La Francesca

Benevento (Italy)

Opdenergy has started operations at the La Francesca Solar Project, a 24.27 MWp photovoltaic plant located in Benevento, Italy. The project has an installed capacity of 24.27 MWp and spans approximately 21 hectares.

Scope of the project

24 Peak Power (MW)
21 Rated Power at POC (MW)
21 Area (ha)

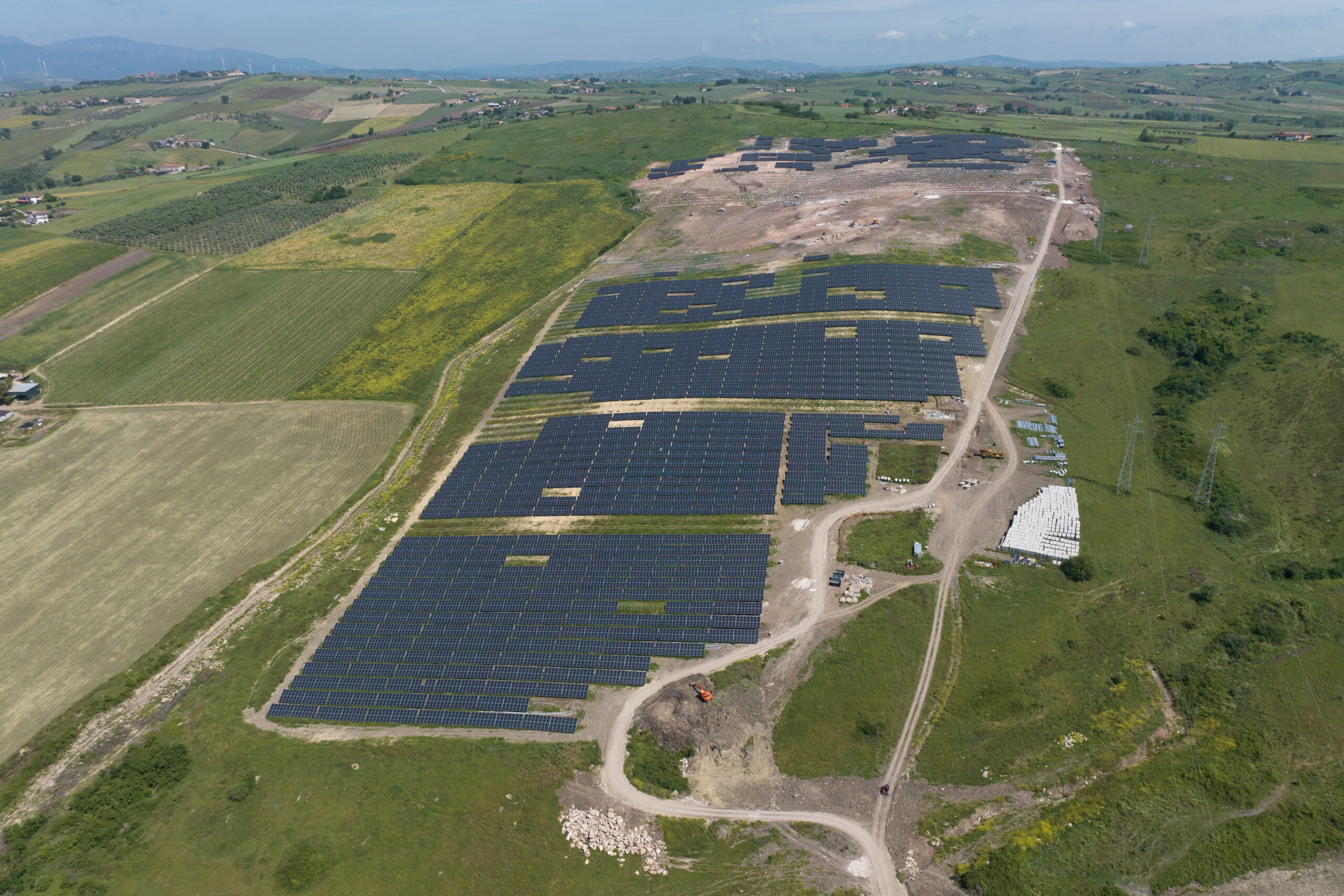

Gallery

Technical information

Key Project Characteristics

  • POC Capacity (MW): 21
  • DC Capacity (MWp): 24.27
  • AC Capacity (MVA) (50°C): 21.9
  • DC/AC Ratio: 1.14
  • DC Voltage Level (V): 1,500
  • Perimeter Fence Length (m): 2,124.58
  • Fenced Area (ha): 21.35

Mechanical Characteristics

  • Tracker Type: FIXED 2P14
  • Maximum Tilt Angle: 25°
  • Pitch (m): 7.2
  • Number of Fixed 2P14 Structures: 1,576

Electrical Characteristics

  • Module Power (Wp): 550
  • Number of Modules: 44,128
  • Modules per String: 28
  • Number of Strings: 1,576
  • Inverter Model: SG3125HV-MV-30
  • Number of Inverters: 7
  • Number of Power Stations: 4
  • Transformer Capacity (kVA) (50°C): 3,125
