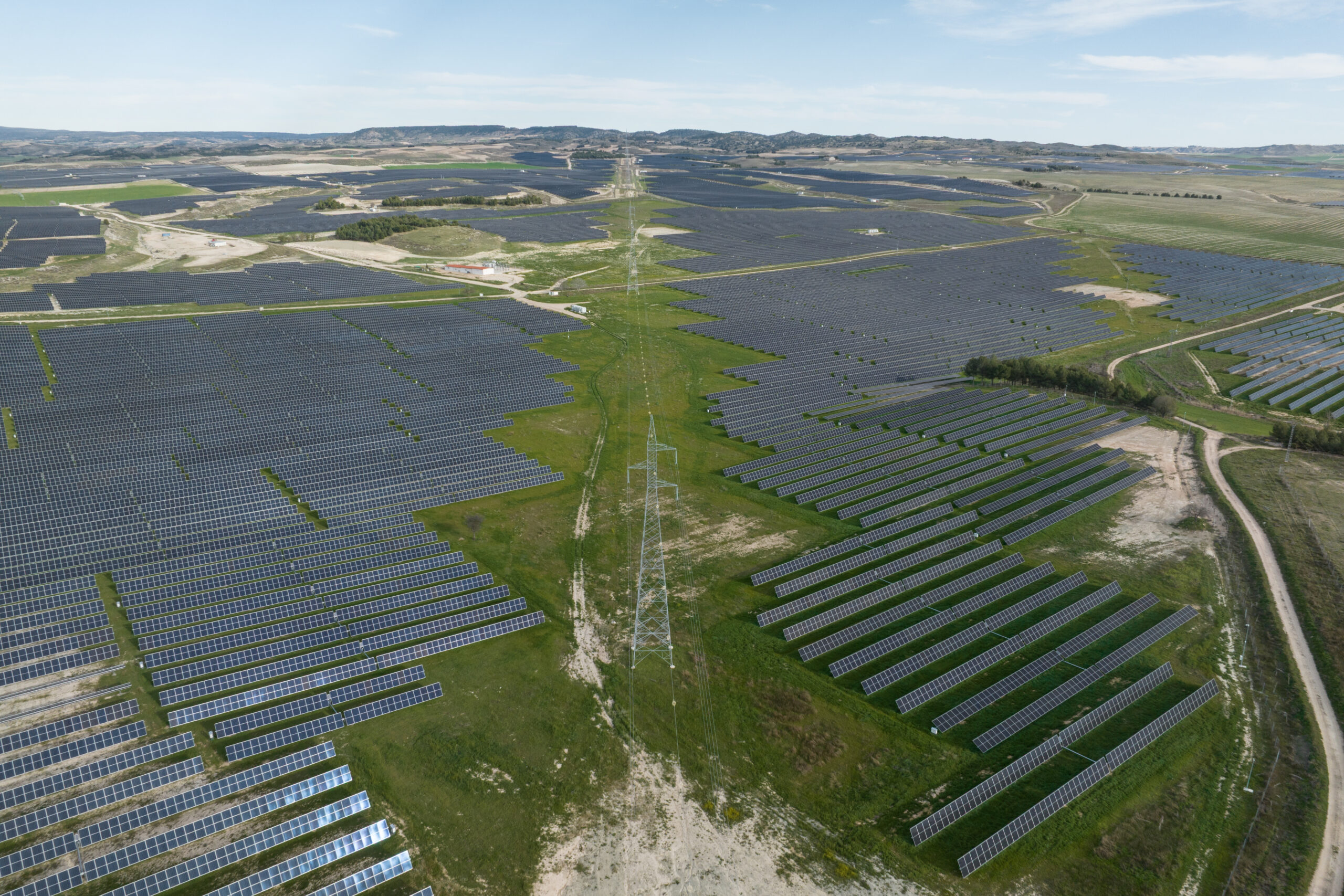

Opdenergy has started operations at the Belinchón Solar Project, a 166.5 MWp photovoltaic plant located in Belinchón, Cuenca, Spain. The project spans approximately 367 hectares.
Covatillas
Castillejo de Iniesta, Cuenca (España)
Belinchón
Belinchón, Cuenca (Spain)
Scope of the project
166,5
Peak Power (MW)
124
Rated Power at POC (MW)
367
Area (ha)
Gallery
Technical information
Modules
- Manufacturer: EGING PV
- Module Model: EG-540M72-HL/BF-DG
- Module Power (Wdc): 540
- Number of Modules: 308,328
Inverters
- Inverter Model: SUNGROW SG3125HV-30
- Design Temperature (°C): 34
- Maximum Power / cos(φ) = 1 @ 25°C (kVA): 3,437
- Maximum Voltage (V): 1,500
- Number of Inverters: 42
- Number of Power Stations: 21
Structure
- Structure Type: Single-Axis Tracker
- Model: 1V116 / 1V58
- Tracking Angle: ±55°
- Row Spacing (m): 7.5
